Mollier Diagram Problems

Diagram is not mentioned in Molliers first paper. Mollier is from orgine the study association of the faculty Building Services at the Eindhoven University of Technology The Netherlands and was founded in 1996.

Zoned Mollier Diagram For Air Treatment Functions Of A Solar Dec Process Download Scientific Diagram

See the Mollier diagram in Figure A- 21.

Mollier diagram problems. Using such software one can generate his own tilormade diagram with required lines in interactive way and even print them as required. The Mollier Diagram is the European version of the Anglo-American Psychrometric Chart. This first paper written clearly and illustrated effectively with fourteen line drawings sets the stage for all of his follow- ing technical publications.

Compressor performance cannot be accurately predicted without detailed knowledge of the behavior of the gas or gases involved. Solution of Compression Problems Using Mollier Diagrams See Figures 18-24AH. This is our field of operation which.

The diagram is used to engineer an air handling unit. The logo of the study association is also based on this diagram. In this example we will show you how to calculate the following aspects of a unit using the Mollier diagram.

Self Assessment Problems Questions 1. Download and print Mollier Diagram for Water - Steam The Mollier diagram is useful when analyzing the performance of adiabatic steady-flow processes such as flow in nozzles diffusers turbines and compressors. The solution of the work compression part of the compressor selection problem is quite accurate and easy.

In general it is a relationship between enthalpy measure of the energy of a thermodynamic system air temperature and moisture content. Well bulky printed diagrams do pose problem of readablity and error due to required interpolation but Molliers diagram software helps to overcome many of those problems. Solved problem using Mollier Diagram and drawn velocity triangle About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy.

Also service technician make good use of the Mollier diagram while installing or maintaining installations that cool air heat air steam refrigerate etc. Mollier diagrams are readily available for most pure gases at conventional pressures and temperatures. The problems involving the use of Mollier diagram enthalpyentropy chart for steam are.

The enthalpy- entropy charts in Appendix B are Mollier Diagrams. Mollier is often referred to as. The diagram was created in 1904 when Richard Mollier plotted total heat against entropy.

Solved Examples 57 59 510 and the exercise Problem 4. Steam Nozzle problems- Con-Div nozzle using mollier diagram- part- 1 - YouTube. 6 From Example Problem 2 to determine the enthalpy of a wet steam mixture at 120 psia with a steam quality of 80 first read the lines of constant moisture in the wet region that corresponds to 1.

Mollier or Enthalpy-Entropy h-s diagram Problem 211. Hello EveryoneWelcome to our channel. Steam Nozzle- Problems on Convergent - Divergent Nozzle using Mollier Diagram-.

I will describe first the Mollier diagram and then show the simple transformation that changes it into the psychrometric chart. Steam Nozzle- Problems on Convergent - Divergent Nozzle using Mollier Diagram- Part- 2 - YouTube. The isentropic expansion processes of these four examples are marked on a Mollier chart which is reproduced in Fig.

Mollier Diagram for WaterSteam - US Customary System Water-Steam Saturation Properties by Pressure in US Units The most detailed and comprehensive superheated steam tables we can find freely available online can be downloaded HERE for USCS units. The writers find it mentioned first in Molliers 1904 paper. Using the Mollier diagram find the entropy of steam at 400C and 1 Atm.

Mollier work many years with his students to enhance his diagrams and works on other problems in thermodynamicsrefrigerationhydraulics and gas engines. The following are some example problems in English units using a Mollier Diagram. Mollier diagram is a graphical representation of a functional relationship between enthalpy entropy temperature pressure and quality of steam.

Identify the point of intersection of the 400C line or 400C isotherm and the. The name originates from Richard Mollier who developed a diagram which illustrates different states of moist air. Figures 6-5 English units and 6-6 SI units are Mollier diagrams for steam.

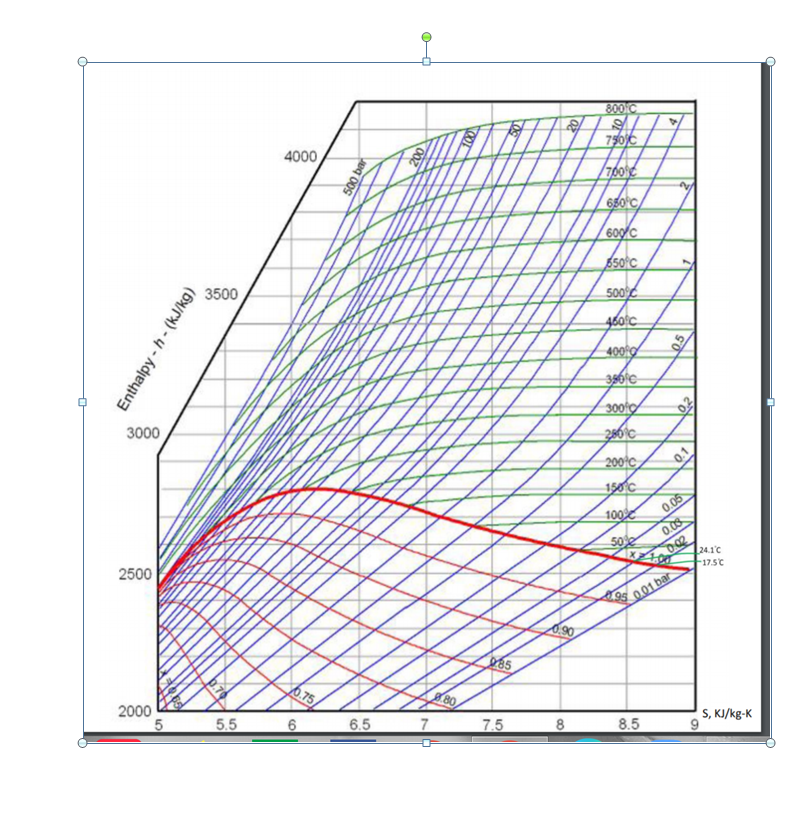

The diagram below can be used to determine enthalpy versus entropy of water and steam. This is our third numerical problem of vapour power cyclein this video we will discuss how to solve numerical problem of vapour power cycle with the help of. The Mollier diagram also called the enthalpy h entropy s chart or h-s chart is a graphical representation of thermodynamic properties of materials.

In this channel you will learn all about topic of mechanical and civil engineeringIn this large spread youtube channel. A main H-S coordinate system Enthalpy-Entropy is used. However in cryogenic areas or at very high pressure some gas behaviors are difficult to predict.

- Selection from Ludwigs Applied Process Design for Chemical and. Enthalpy Entropy Diagramor Enthalpy Entropy Chart. Find the specific volume enthalpy and internal energy of wet steam at 18 bar with dryness fraction x.

Cooling coil Heater capacity Steam humidifie We start by establishing the outside and inside conditions. They are identical in content but not in appearance. The Mollier diagram also called the ix diagram is based on the relationship.

Commonly used Mollier diagrams are the enthalpy-entropy or h-s diagram and the pressure-enthalpy diagram illustrated at the bottom of this page. Engineering Thermodynamics - Lecture 31. The Mollier diagram is the representation of the properties of water and water vapor.
