Er diagram from sql script. Name it as Item and press Enter to confirm editing. Designed for developers and data analysts. What is an ER Diagram.

The ERD tool allows you to generate an ER diagram from a SQL database. How to Generate a Diagram or an Entity using Parser. By using its drag-and-drop feature working with diagrams is.

PRIMARY KEY - A combination of a NOT NULL and UNIQUE. You can turn the whole schema into a diagram or you can select only some tables that you want to be imported. It does not provide a feature to generate SQL script from the diagram so consider this more of a drawing tool and not a full database modeling tool.

Then click on the diagram to create an entity. Jul 12 2018 83000 AM by Norm TeamT. If you dont see anything in the diagram area zoom out or use the Navigator window to make sure youre in an area with your tables.

It can process SQL scripts and create a diagram based on them. Entity relationship diagrams show how data is structured in relational databases. Additionally sqlt can also be used to convert between various database schemas as well.

Other available drivers can be obtained by. A free simple tool to draw ER diagrams by just writing code. See below simple SQL commands later Ill use them to generate a sample diagram.

It is also possible to create an ERD from a SQL DDL script. Visualize your database structure in a relational and logical way with the help of Lucidchart ER diagram maker. Generate Entity Relationship Diagrams from a SQL Script.

An ER diagram ERD or entity relationship diagram is a graphical representation of your database schema. Name the ERD as BikeShop and press OK to create the blank ER diagram. Sometimes just occasionally you find yourself as a DBA on a site where for some strange and unknown reason you dont have an Entity Relationship Diagram ERD for the database that you are working on.

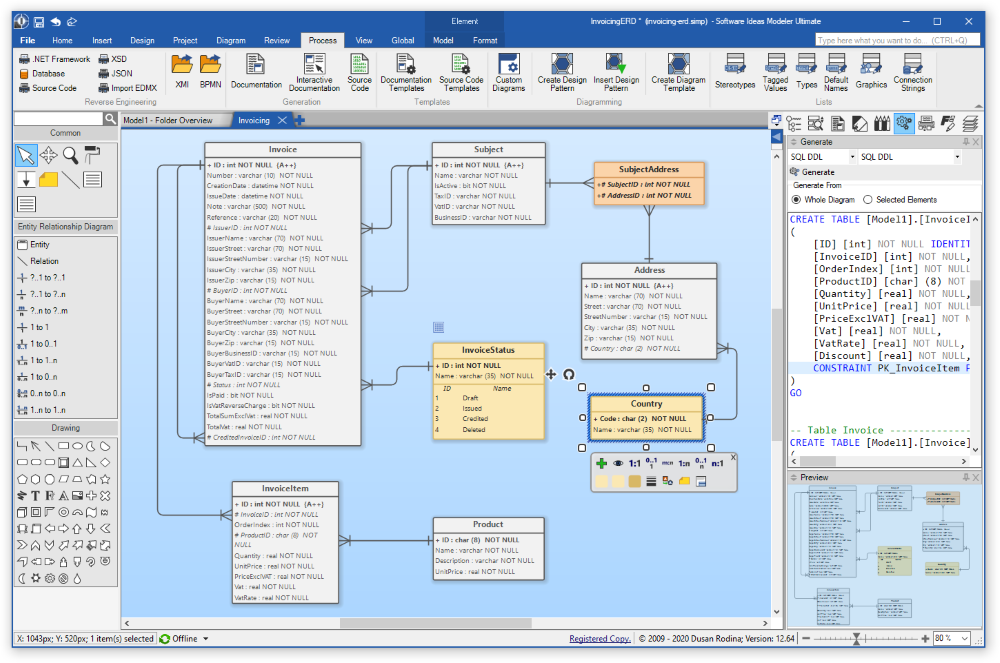

Click Arrange Insert From SQL. Choose SQL DDL from the language drop down. Where -dMySQL specified the MySQL driver.

FOREIGN KEY - Ensure the referential integrity of the data in one table to match values. Source Code Generation dialog will show. Ensures that a column or combination of two or more columns have a unique identity which helps to find a particular record in a table more easily and quickly.

This online ER Diagram tool lets you insert entities by copying SQL codes to a text file and importing them. Copy and paste your SQL code into the dialog then click Insert MySQL or Insert SQL. Each entity consists of rows of attributes.

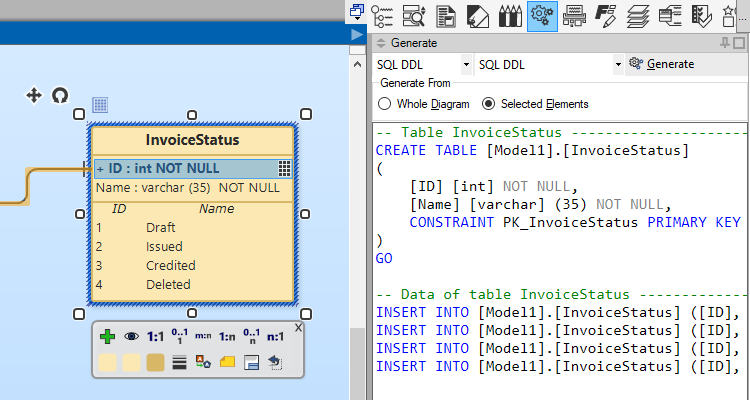

Then switch to the Process tab in the ribbon and click on the Source Code button in the Generation group. This can streamlines creating a new database or understanding the structure of an existing database. Select Entity from the diagram toolbar.

SqlDBM is an online PostgreSQL ER diagram tool that enables collaborative work with your teams on any platform. Dataedo enables you to create database documentation of your existing relational databases. Go to Diagram New to open the New Diagram dialog.

It also supports many other DBMSs such as MySQL SQL Server and Amazon Redshift. It shows the tables or entities as boxes with connecting lines representing the foreign key relationships that exist between them. Entity Relationship Diagram ERD graphically shows the structure of a database so you can see how database elements such as tables and views relate to each other without viewing the actual data.

It reads your schema and lets you easily describe each data element tables and columns and other database objects like triggers stored procedures etc visually as ER diagrams. Preparing Your Data to Generate ERD or Database Diagrams. Enter erd in the search box to locate the Entity Relationship Diagram.

Create an ER diagram from SQL code. Smart Parser sidebar is a useful helper. You could use a tool such as Toad or SQLPlus.

Learn more about how to generate an ER diagram automatically using your exported data. Before SmartDraw can generate your database diagram youll have to export your data from your database. You can generate the SQL CREATE and INSERT scripts for the chosen ER diagrams in your project very easily.

To create a ER diagram with color named sample_schemapng run the following in the command line. In SQL we have the following constraints. First open an existing project or draw an ER diagram in a new project.

Draw Entity-Relationship Diagrams Painlessly. ERD from SQL. Press Next to proceed.

Or use the tree on the left pick a table and right click Go to Diagram - it will take you directly to that object in. Sqlt-diagram -dMySQL -osample_schemapng samplesql --color. ER diagrams are used in software development and by IT workers to design and document database structure.

SqlDBM has many features and accommodates notations like Crows Foot and IDEF1X to model your data from the conceptual to the physical. MySQL Workbench makes it really easy to generate EER diagrams from SQL scripts. Below youll find some scripts you can use for some common database types to get the data youll need.

Then type or paste the script into the text area below. Open the Smart Parser sidebar ribbon - ViewWindowSidebarsSmart Parser.
