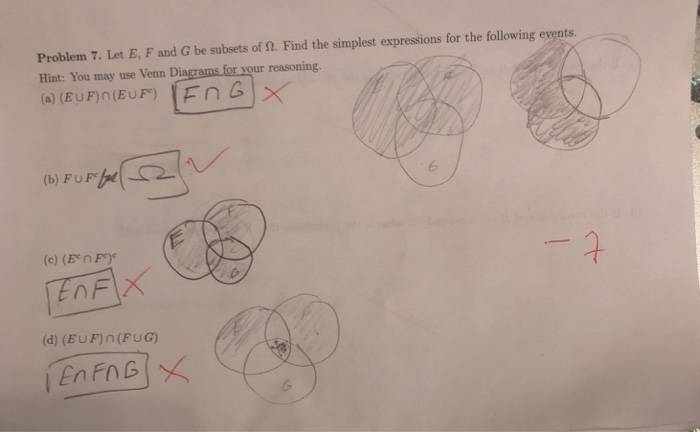

The Venn diagram of Figure 32 indicates that E F. In each separate Venn diagram shade the region indicated.

Solved B Use The Given Venn Diagram To Find The Following Chegg Com

Enter an expression like A Union B Intersect Complement C to describe a combination of two or three sets and get the notation and Venn diagram.

F u g venn diagram. Try the free Mathway calculator and problem solver below to practice various math topics. Venn diagrams were popularized by the English logician John Venn in 1880 and may also be referred to as a primary diagram logic diagram or set diagram. The diagrams are used to teach elementary set theory and to illustrate simple set relationships in probability logic statistics linguistics and computer science.

Landmarks Venn Diagram 5. Venn Diagram Shading Calculator Or Solver. Venn Diagram is an example that uses circles to show the relationships among finite groups of elements.

John Venn is a British mathematician who also. The three circle venn diagrams are helps to represent the relations of 3 objects. Step 3 Merge the two diagrams The shaded portion is A B Ex 15 5 Method 3 Draw appropriate Venn diagram for each of the following.

Ii A B Step 1. Standard Venn diagram shown below. A U B is read as A union B Now that A U B contains all the elements of A and all the elements of B and the figure given above illustrates this.

For instance in the three Venn diagrams shown in Figure 31 the shaded areas represent respectively the events E F EF and Ec. The complete Venn diagram represents the union of A and B or A B. Add all of the numbers contained within the Venn diagram.

U F G E. 36 32 11 15 11 6 9 120 E M U S 15 11 36 36 32 9 EM U S 9 36 15 11 32 11 M U S 15 11 6 Diagram F Diagram G Diagram H. For a class of 20 students the Venn diagram on the right Football and B.

On a Venn diagram shade the regions. Venn Diagrams help to group the information into different chunks. Sign in to download full-size image.

On a Venn diagram shade the regions corresponding to A B. Events of interest can then be indicated by shading appropriate regions of the diagram. Draw U A B Step 1.

Also verify that nA U B nA nB - nA n B. Try the given examples or type in. With this tool you can calculate the intersection s of list of elements.

The green circle is A and the blue circle is B. From the given Venn diagram find i A ii B iii A U B iv A n B. It will generate a textual output indicating which elements are in each intersection or are unique to a certain list.

Dont confuse this symbol with the letter u This is a two-circle Venn diagram. Problem-solving using Venn diagram is a widely used approach in many areas such as statistics data science business set theory math logic and etc. A Venn diagram is a widely used diagram style that shows the logical relation between sets popularized by John Venn in the 1880s.

Given U a b c d e f g h i A a b c A d e f g h ii B d e f g B a b c h iii C a c e g C b d f h iv D f g h a D b c d e. You have the choice between symmetric. The usual depiction makes use of a rectangle as the universal set and circles for the sets under consideration.

On a Venn diagram shade the regions corresponding to A B. A B U 11. The union of two sets is represented by.

Feel free to click on the image to try this diagram as a template. Venn diagrams are very similar to the Euler Diagrams. For this example the equation is.

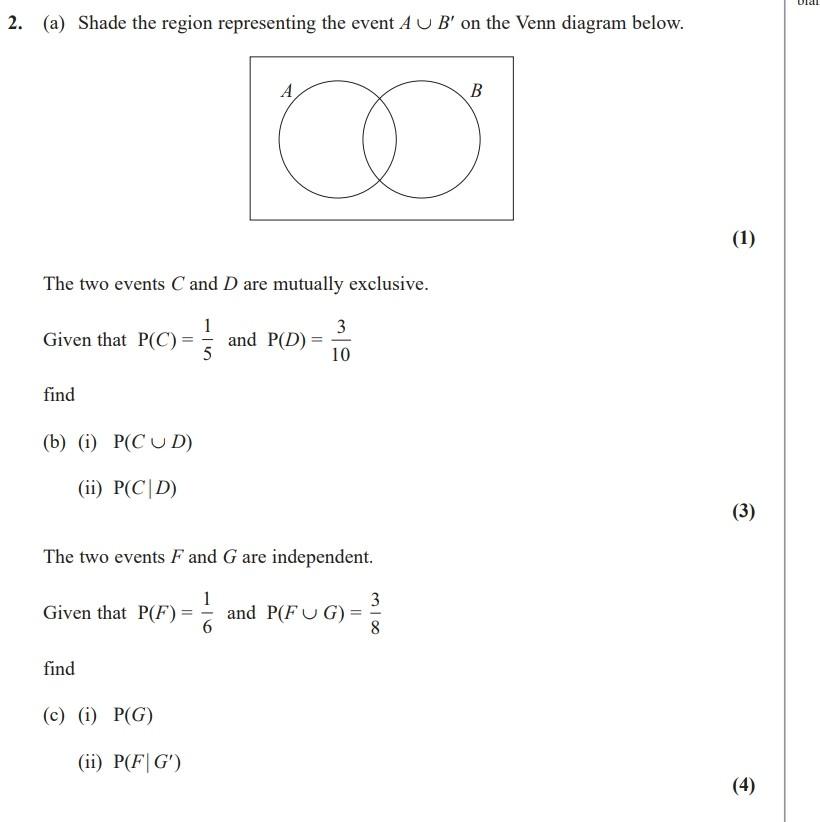

On a Venn diagram shade the regions corresponding to A B. Draw U A B Step 2. On a Venn diagram shade the regions corresponding to A B.

Iii A B Step 1. Its represented by the two circles including the overlapping section on the Venn diagram. If the number of lists is lower than 7 it will also produce a graphical output in the form of a vennEuler diagram.

What is a Venn Diagram. A Venn diagram is a diagram that helps us visualize the logical relationship between sets and their elements and helps us solve examples based on these sets. The Venn diagram below is the graphical representation of two more sets.

Mark A Ex 15 5 Draw appropriate Venn diagram for each of the following. Venn diagram also known as Euler-Venn diagram is a simple representation of sets by diagrams. Example If A f1234g B f2468gand C f3456gare subsets of the universal set U f12310g list the elements of the set A0B C.

John Venn was inspired by the 18th-century Swiss mathematician and logician Leonhard Euler who had used a similar approach to organizing data with circles although his circles did not overlap. Create a Venn diagram showing the relationship between squares S quadrilaterals Q rectangles R and parallelograms P. In CAT and other MBA entrance exams questions asked from this topic involve 2 or 3 variable only.

It is important to note that all the outcomes that do not satisfy event a are written as A. Use parentheses Union Intersection and Complement. The best way to explain how the Venn diagram works and what its formulas show is to give 2 or 3 circles Venn diagram examples and problems with solutions.

Venn Diagrams highlight similarities and differences. Venn Diagrams categorize and classify information. The sets represent information about two sisters - Leah L and Kelly K and their interests.

A Venn diagram invented by John Venn is a collection of closed curves drawn usually inside a rectangle. A Venn diagram typically uses intersecting and non-intersecting circles although other closed figures like squares may be used to denote the relationship between sets. A Venn diagram uses simple closed curves drawn on a plane to represent sets.

Compute the elements of various subsets. Venn Diagrams are used both for comparison and classification. Draw U A B Ex 15 5 Draw appropriate Venn diagram for each of the.

A0 f5678910g B C f46gso A0B C.

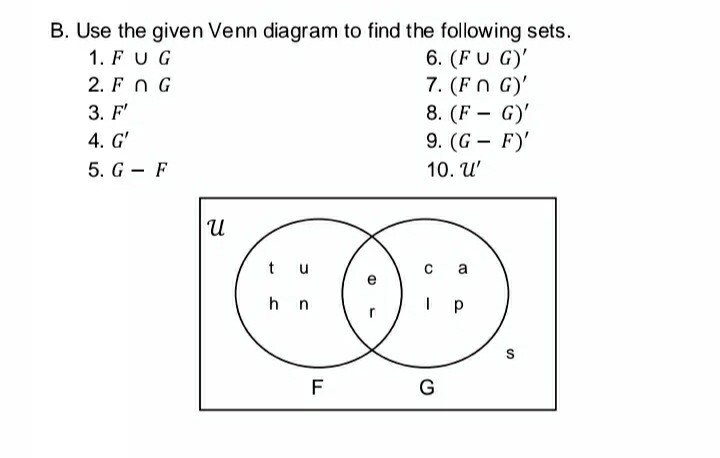

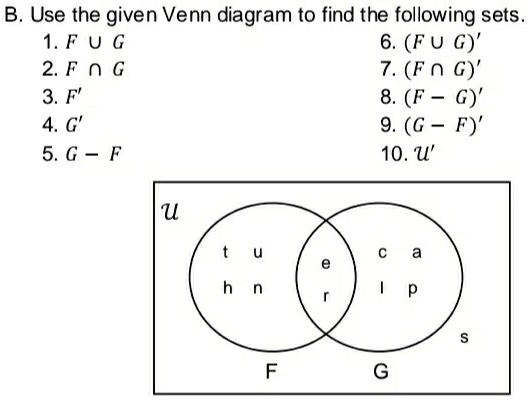

Solved B Use The Given Venn Diagram To Find The Following Sets 1 F U 6 F U G 2 F 0 G 7 Fn G 3 F 8 F G 4 G 9 G F 5 G F 10 U U
